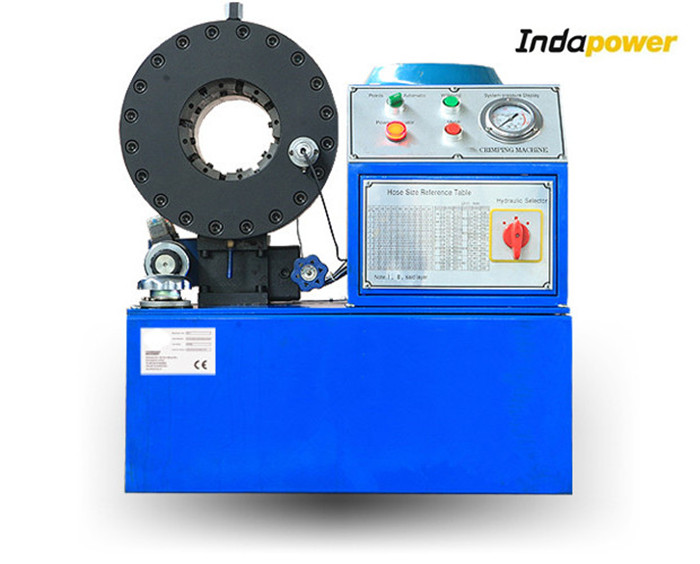

IDP-120 Hose Crimping Machine
Technical Details
|
Model No. |
IDP-120 Hose Crimping Machine |
|
Crimping Range |
Hose ID: 4-51mm(0.157’-2.008’） |
|
Hose OD :6-120mm(0.236’-4.724’) |
|
|
Max Opening |
120mm(4.724’) |
|
Crimping Force |
450T |
|
Die Sets |
1/4”,5/16’,3/8”,1/2”,5/8”,3/4”,1”,11/4”,11/2”,2”(High Pressure), 4mm，6mm, 8mm,10mm( Low Pressure) Total 14 Sets |
|
Length of Die |
65mm/80mm |
|
Length of Crimp Hose |
Unlimited |
|
System Pressure |
315Pa |
|
Operation Mode |
Automatic |
|
Matching Power Source |
220V-380V/50HZ |
|
Matching Power |
3KW/4KW |
|
Mold Opening Time |
1.5S |
|
Mold Closing Time |
8S |
|
Dimension(L*W*H) |
600*480*750mm(23.622’*18.898*29.527’) |
|
Total Weight |
300KG |
|
Hydraulic Oil |
46# |
|
Warranty |
3 Years |
